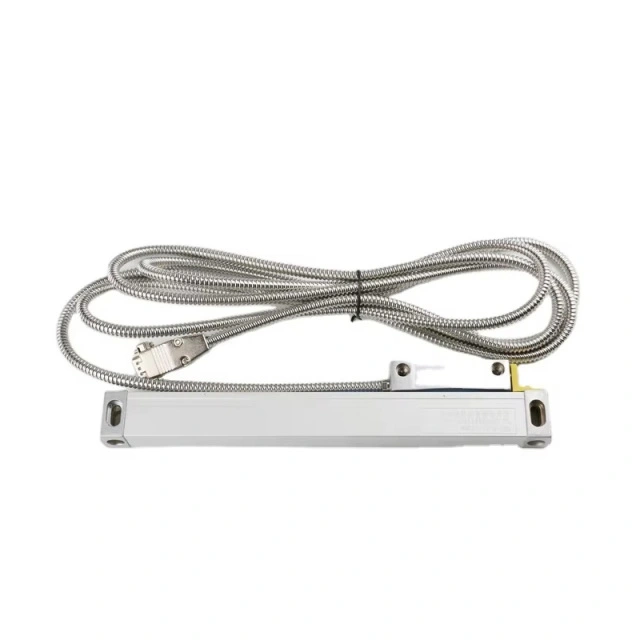

RLC200
Incremental Linear Grating Scale
Sealed Sensor ensures the reliable performance and easyinstallation.High resolutions up to lum.
Optical linear scales series RLC are accurate and reliable; Measuring range from lm to 3m; Widelyapplied to kinds of machine tools (Metal cutting machines,millers, lathes, grinders, spark erosionmachines,optical projectors ).
Specification parameters
| Measuring Range | 1000-3000mm |
| Resolution | lum，5um |
| Accuracy | JB/T10080.2-2000 |
| Reference Mark | Reference marks every 50mm or 100mm |
| Operating Voltage | 5V |
| Output Signal | Voltage(A,B,Z)/Line Driver (A,B,Z,/A,/B,/Z/) |
| Frequency Response | 25m/min,60m/min |
| Operating Temperature | -20 °C(-40 °C)~ +85°C |
| Storage Temperature | -40 °C~ +55°C |
| Protection Class | IP53 |
