DVC48

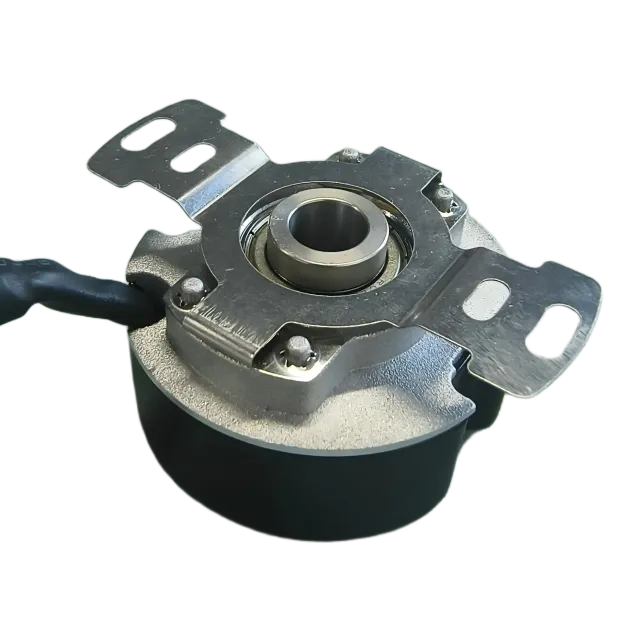

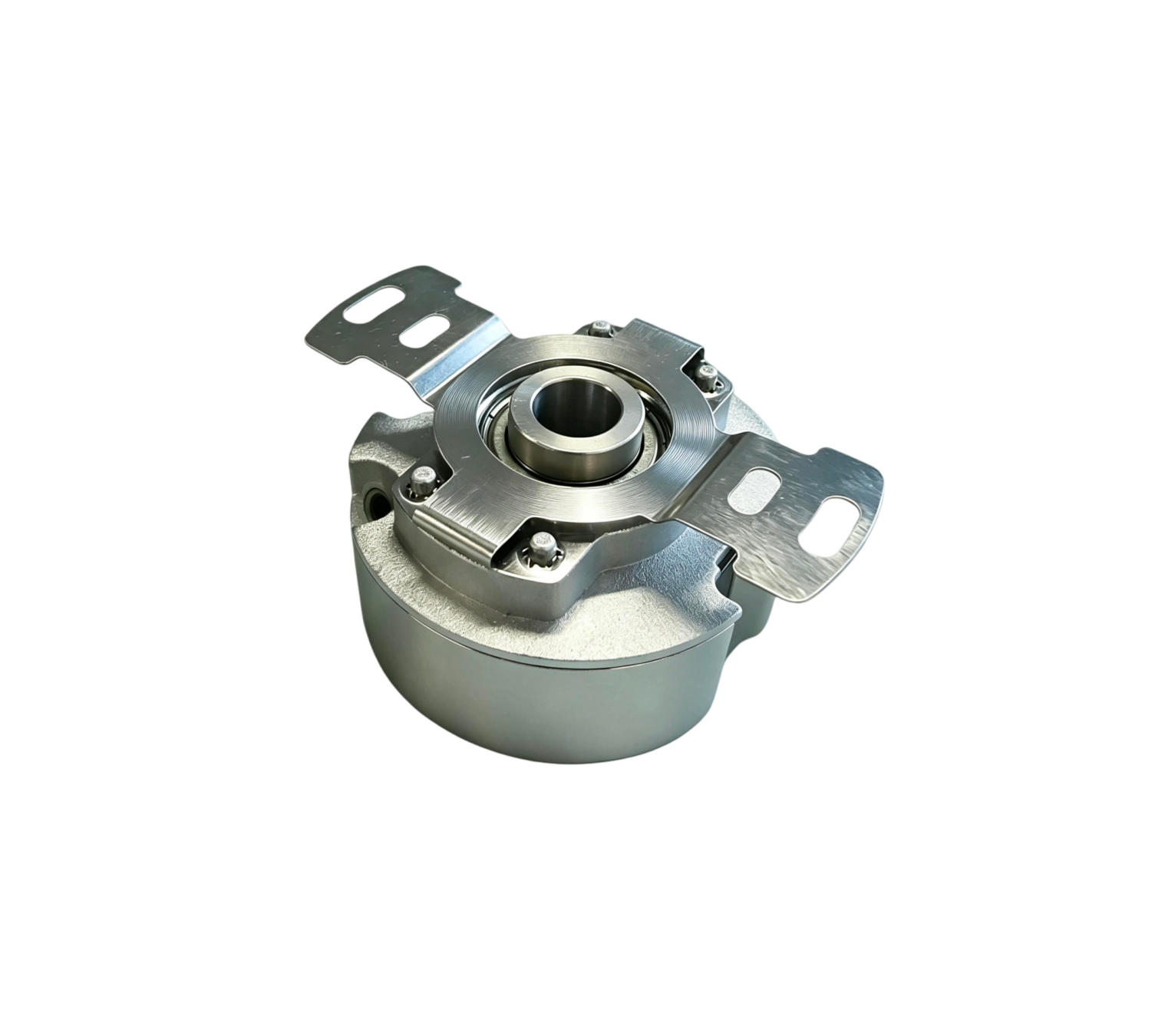

Incremental Optical Encoder
Compact, slim design, high-precision,resolutions up 5000ppr.
Straight and taper shaft are optional Import optoelectronic components,high anti-interference ability.
Specification parameters
| Model | DVC48V9 |
| Outer Diameter | ∅48mm |
| Shaft Diameter | ∅8mm、∅9mm (Taper And Straight Types Are Optional) |
| Supply Voltage | 5V±0.25 |
| Plate Spring | Models A, B, C, D Available (Refer to the catalog) |
| Electrical output type | Line Drive Output |
| Resolution | 1000/1024/2048/2500/5000ppr |
| Output Signals | A: A - Phase Single - Channel Output |
| B: Two - Channel Output With 90° Phase Difference | |
| M: Zero Position Signal | |
| Pole No | 4 poles |
| Universal Rotating Speed | 8000rpm |
| Max Rotating Speed | 15000rpm |
| Breaking Strength of Shaft and Bearing | ≥650N |
| Max Response Frequency | 300kHz |
| Operating temperature | -20°~+85℃ |
| Protection Class | IP50 |
