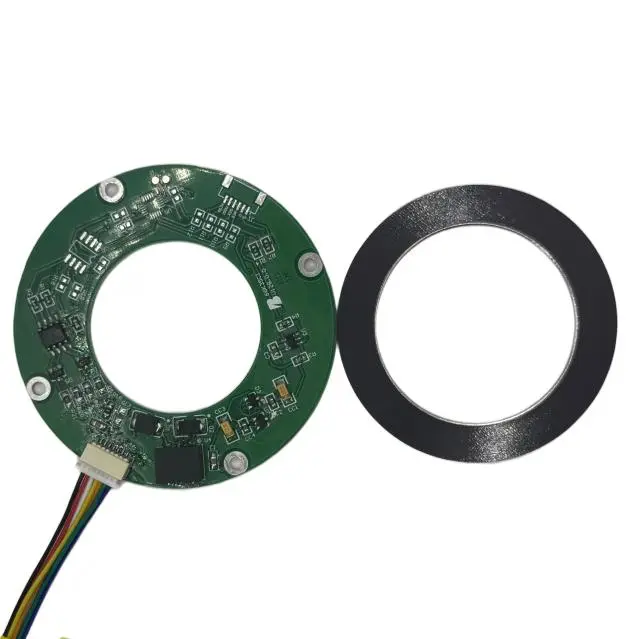

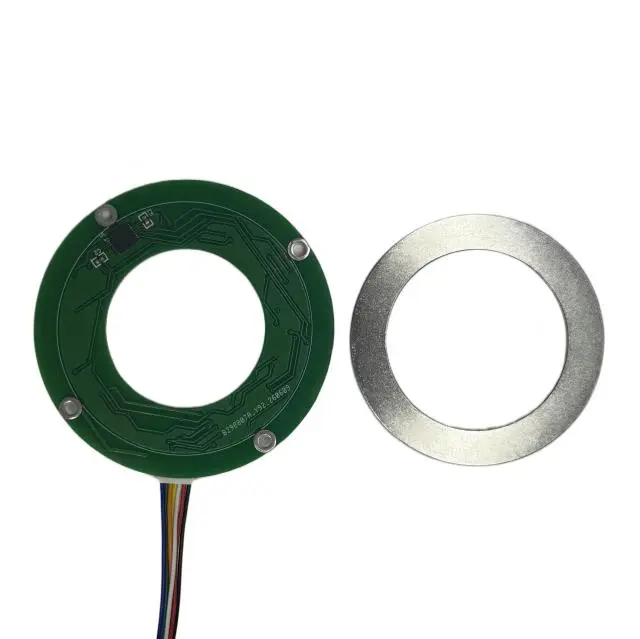

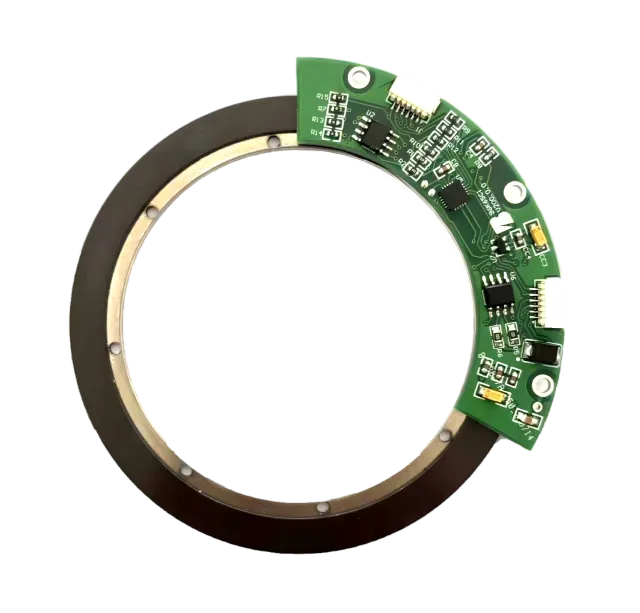

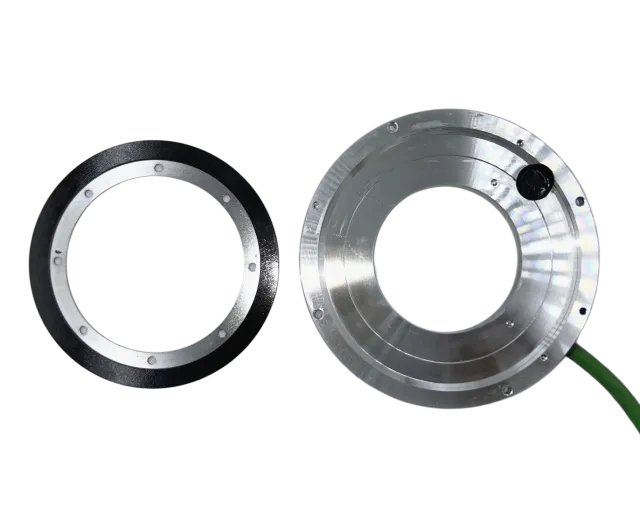

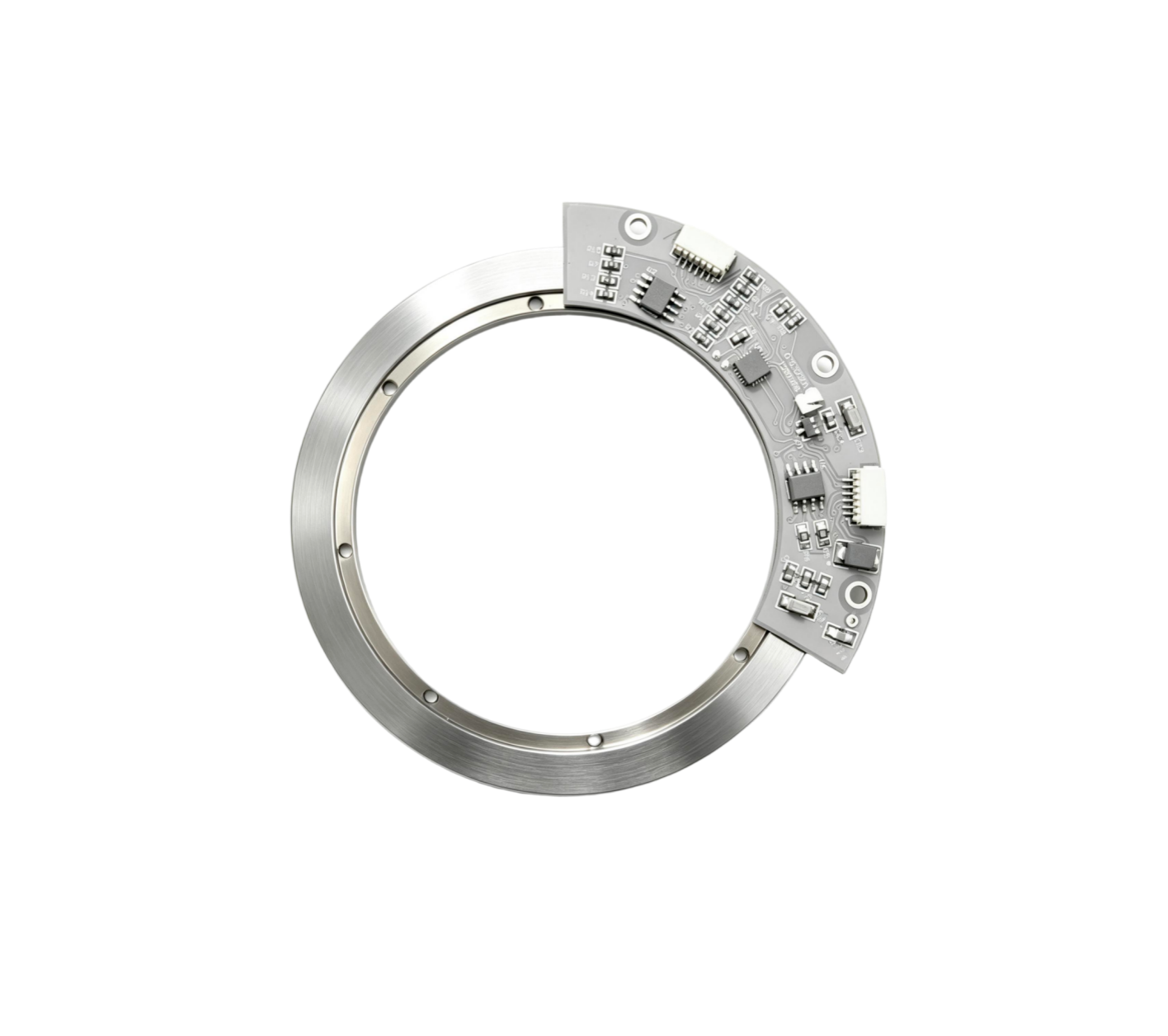

SAM-F Split-type Magnetic Absolute Encoder
Split absolute encoder
Specification parameters
| Parameter | Specification |
| Model | SAM-F Split-type Magnetoelectric Absolute Encoder |
| Outer Diameter | 40/66/96mm |
| Inner Hole | Max 15/41.2/70mm （Hollow Shaft） |
| Wire Outlet Mode | Connector Side Exit |
| Voltage | 5V / 10-30V |
| Communication Interface | RS422, RS485, RS232, SSI, Canopen, BISS-C |
| Single-turn Resolution | 10-20bit |
| Output Code System | Binary Code / Gray Code |
| Operating Temperature | -40℃ to 65℃ |
| Storage Temperature | -50℃ to 70℃ |
