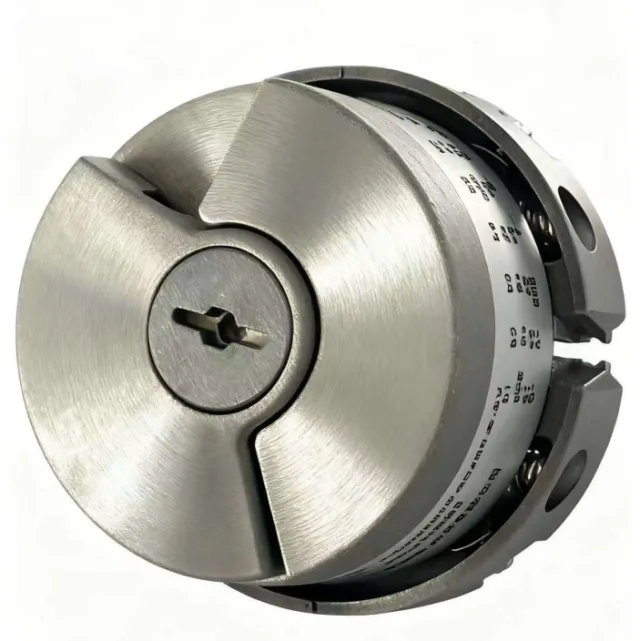

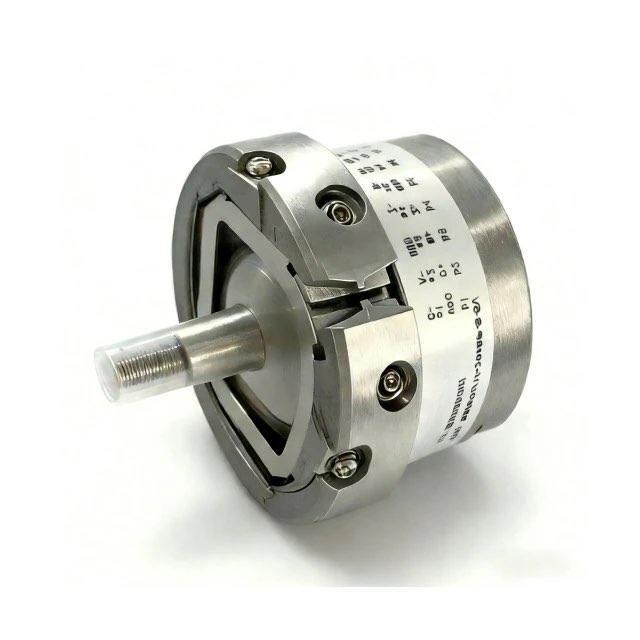

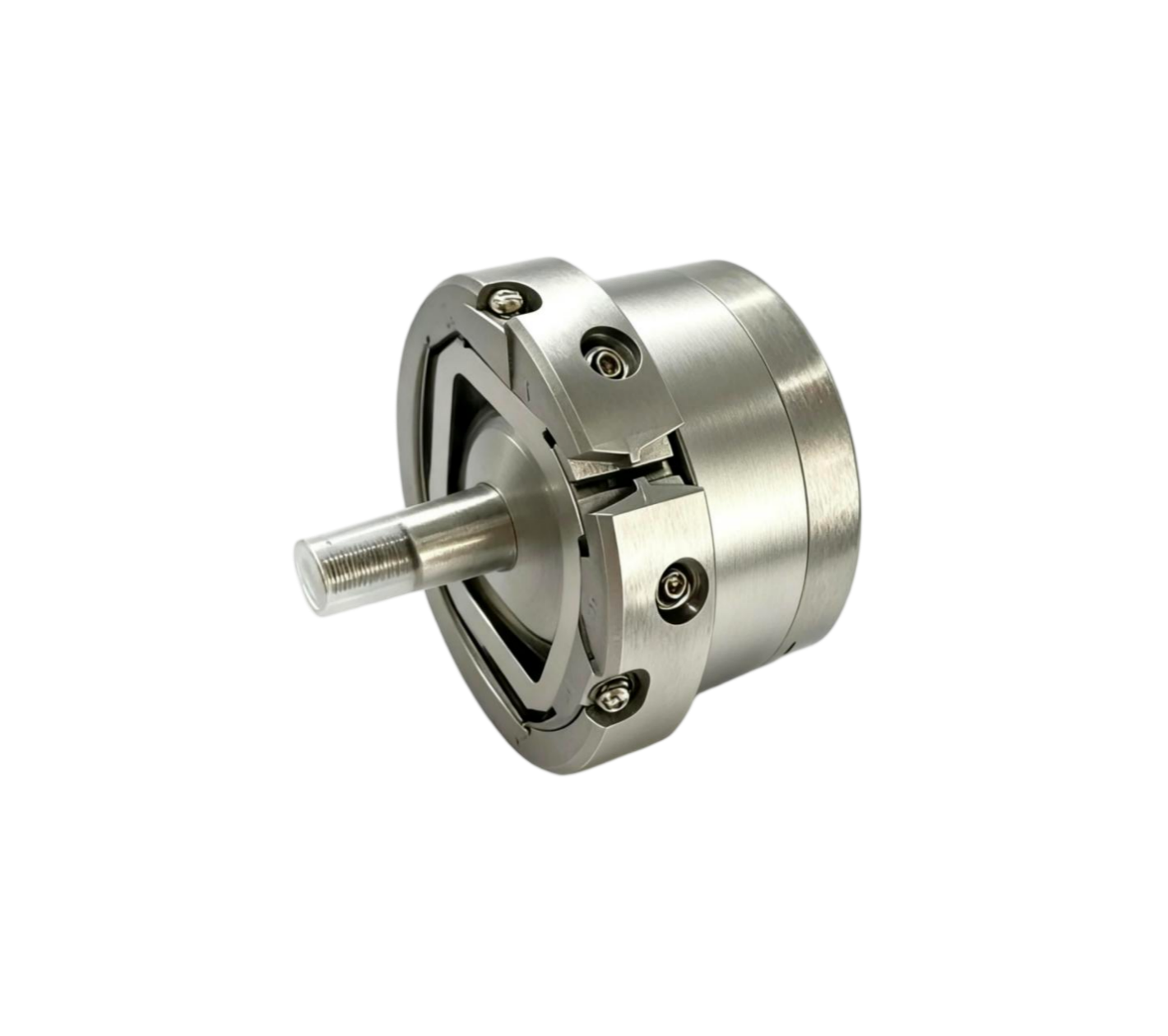

Sinecosine Incremental Encoder REN56U10
Sinecosine Incremental Encoder
Sine cosine output，2048ppr，suitable for elevators and servo motors
Specification parameters
| Parameter Category | Specification Details |
| Encoder Type | Incremental Encoder |
| Output Signal | Sine-Cosine Output |
| Resolution | 2048 PPR (Pulses Per Revolution) |
| Mechanical Dimension | Outer Diameter: 56 mm |
| Shaft Type: Solid Shaft | |
| Shaft Diameter: 9.525 mm | |
| Electrical Connection | Terminal Type: 14-Pin Terminal |
| Cable Configuration: Cable Compatible (Optional Accessory) | |
| Application Field | Elevator Systems, Servo Motors |
| Core Feature | High Precision Position Feedback, Sine-Cosine Signal Output, Solid Shaft Design |
