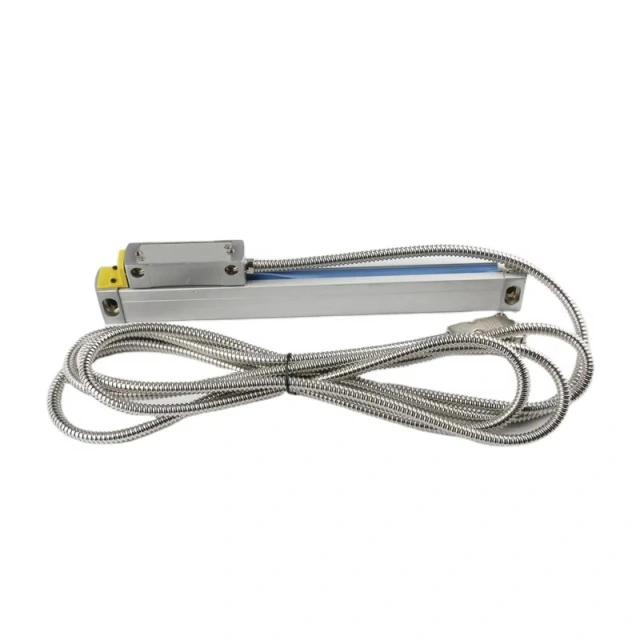

RLC400
Incremental Linear Grating Scale
The RLC series optical linear scales are characterized by high accuracy and consistent reliability.
Owingto their reduced dimensions, they are applicable even to small-sized machine tools such as millers.lathes, grinders, and spark erosion machines. The sealed sensor design ensures reliable operationaperformance and facilitates straightforward installation, boasting high resolutions up to lum.
Specification parameters
| Model | RLC400 Incremental Enclosed Linear Grating Ruler |
| Measurement | 0-1000 mm |
| Resolution | 5um / 1um |
| Supply Voltage | 5V; 8-26V |
| Signal Waveform | TTL |
| Output Signal | Voltage output; Line Driver output |
| Reference Mark | Every 100mm |
| Plug | 9Pins Computer; 7 Pins Aviation |
| Operating Temperature | -20～85℃ |
| Protection Class | IP53 |
