Split SAM22
Magnetic encoder

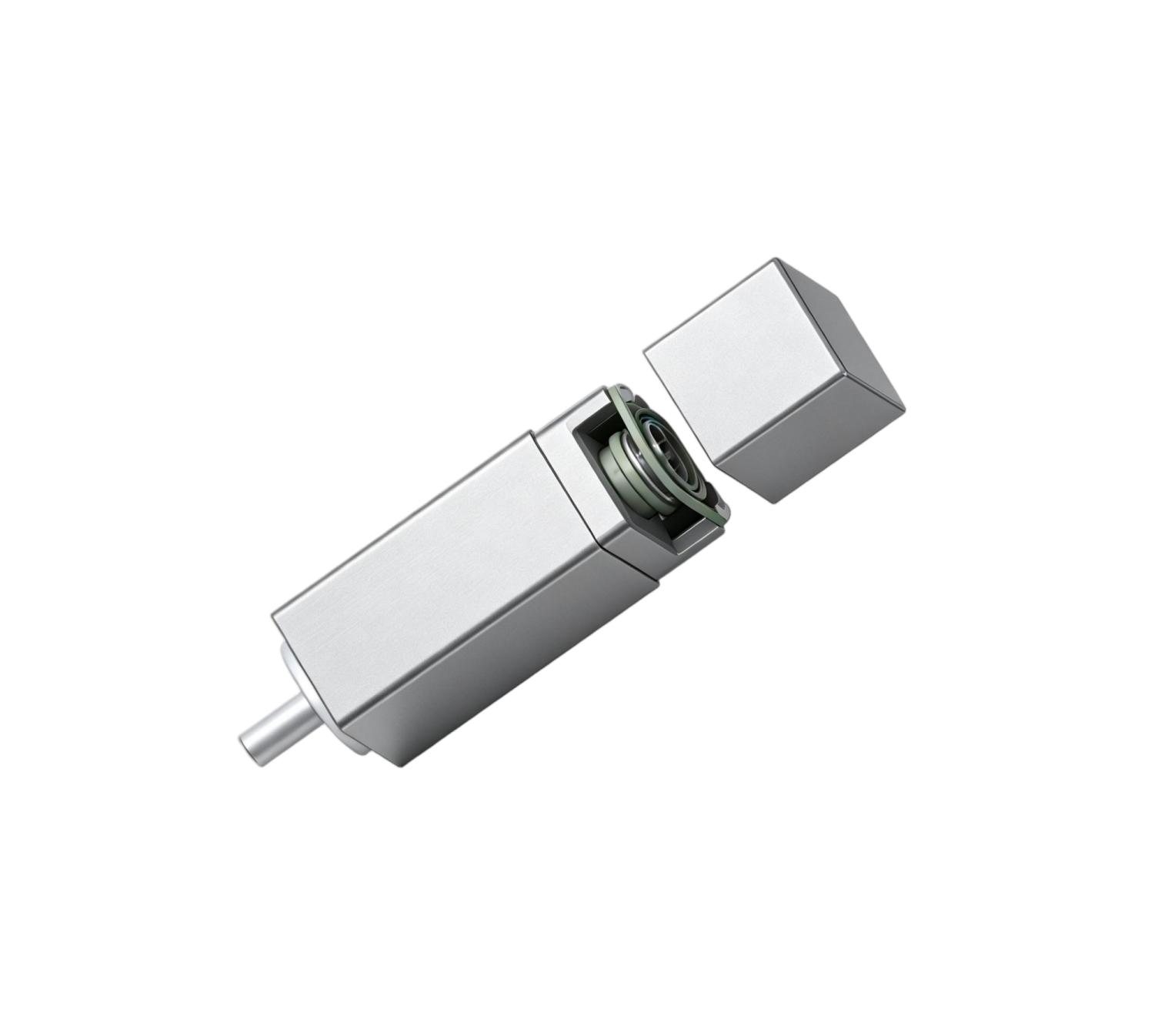

Split Absolute Magnetoelectric Encoder
Specification parameters
| Model | SAM22 Absolute Value Magnetic-Electric Split-type |
| Outer Diameter | 22mm*22mm |
| Shaft Diameter | ∅5mm |
| Supply Voltage | 5V±0.25 |
| Battery Voltage | 3.6V |
| Communication Interface | RS485 |
| Baud rate | 2.5MHz (Optional for Mass Production) |
| Update Rate | 16K |
| Communication Protocol | Timed Transmission |
| Communication code system | Positive Logic Binary Code |
| Resolution-Single-turn | 23bit(17bit Optional) |
| Resolution-Multi-turn | 16bit |
| Operating Speed | ≤6000rpm |
