RSF

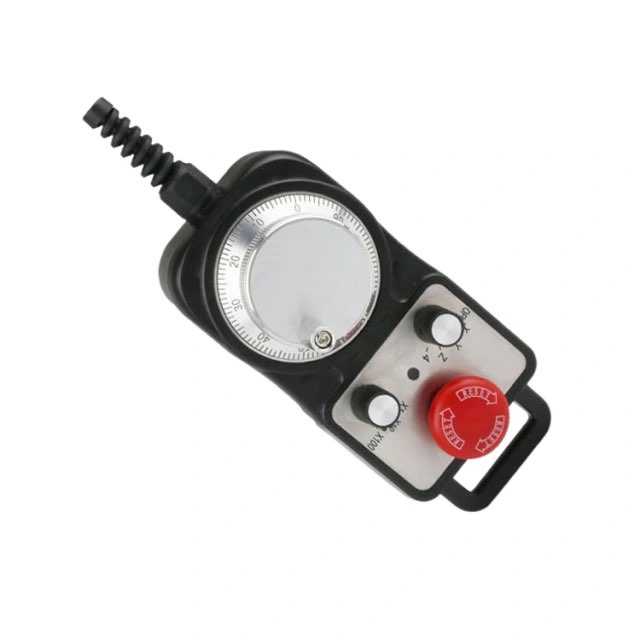

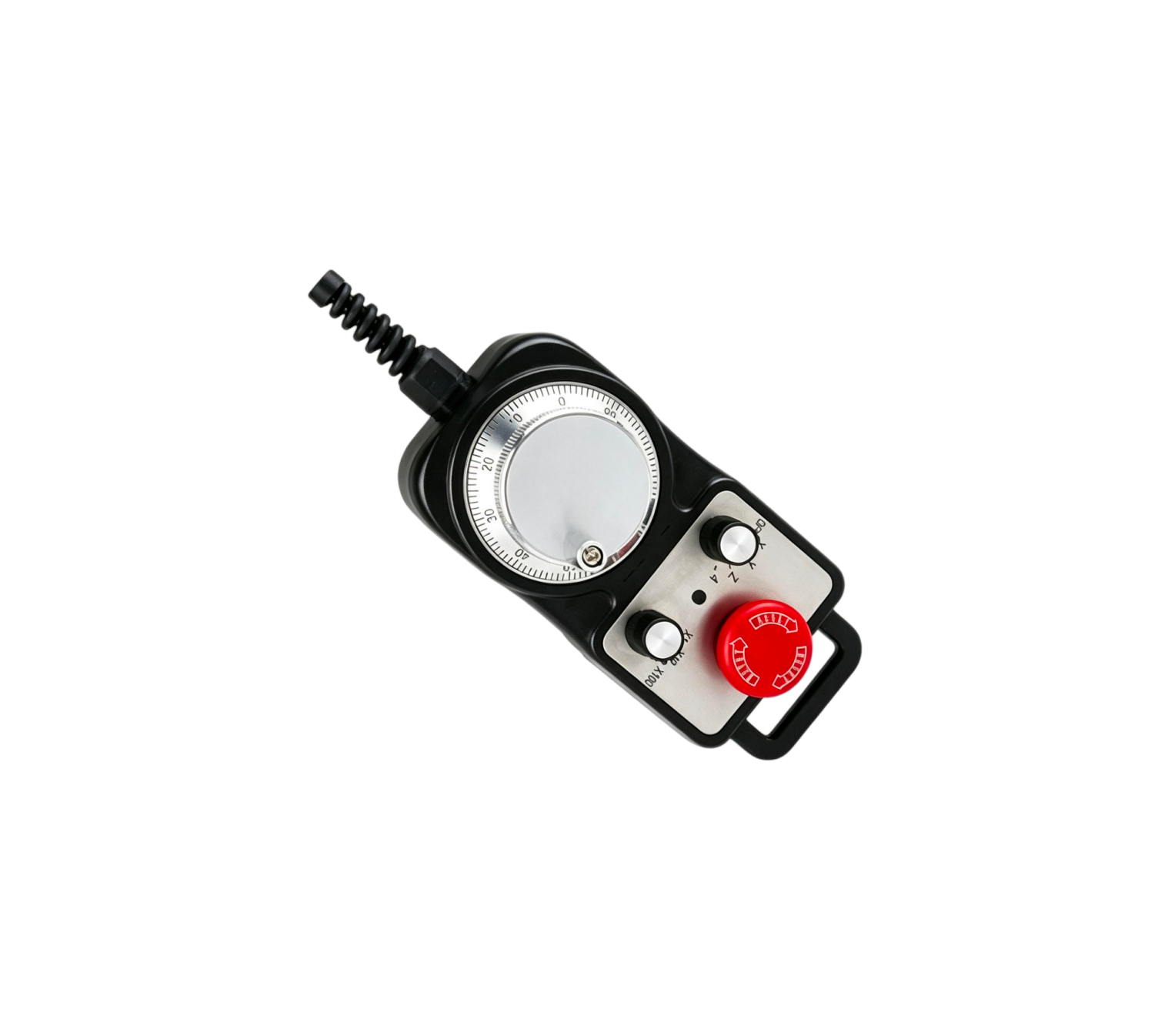

Manual Pulse Generator
All-plastic housing, anti-oil,sealed.With axis selection switch and resolution switch.Emergency stop switch and reset switch optional.Used for origin correction and signal segmentation of CNC machine tools.
The Manual Pulse Generator (MPG) is a precision electronic handwheel designed for manual pulse input on CNC machine tools. It generates reliable pulse signals to control axis movement, origin correction, and fine adjustments in automation systems. Built with a durable housing, axis and resolution selectors, optional emergency stop and reset switches, and compatibility with various control systems, this MPG enhances operator control and machining accuracy.
Specification parameters
| Product Type | RSF |
| Axis No. | 4 Axis ；6 Axis |
| Resolution Switch | Optional |
| Emergency Stop | Optional |
| Spiral Cable | Standard 3M |
| Supply Voltage | DC5V：DC8 - 26V |
| Output Circuit | Voltage Output |
| Push - pull | |
| Open Collector | |
| Line Driver | |
| Wide Voltage Line Driver | |
| Resolution | 25ppr、100ppr |
| Signal | 90° phase different, A & B signals output |
