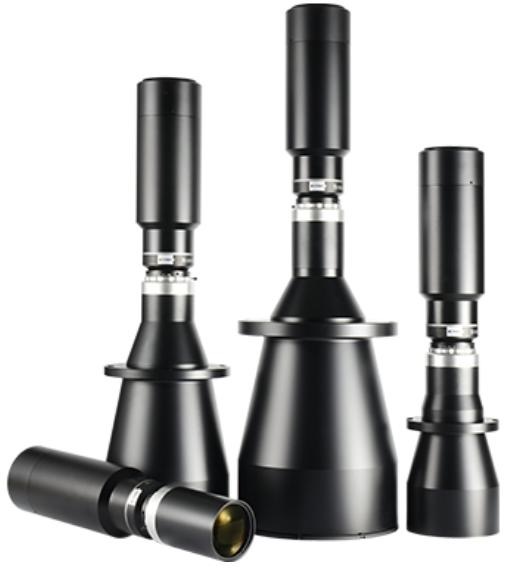

16K Line Scan Telecentric Lens
Supports 16K line scan cameras with a dual-sided telecentric design, providing ultra-high telecentricity that can enhance measurement accuracy by several times. Optional variable aperture is available to effectively balance depth of field and resolution. It can provide specially matched parallel light sources to improve illumination uniformity. Some lenses support internal L90 steering, saving installation space.
Specification parameters
| Model | Optical Configuration | Magnification | Object Space FOV | Image Space FOV | Working Wavelength | DOV | F/# | 35mm Full/36x24mm | 16k x 5μm/81.92mm |
| FC-P04582-16KM95 | Double Telecentric | 1.92 | 42.7 | 82 | 120 | 0.5@F18 | F8-F111.5 | 18.75X12.5 | 42.67 |
| FC-P05582-16KM95 | Double Telecentric | 1.571 | 52.2 | 82 | 138 | 0.8@F18 | F8-F111.5 | 22.92X15.28 | 52.15 |
| FC-P06582-16KM95 | Double Telecentric | 1.328 | 61.7 | 82 | 160 | 0.8@F13.5 | F8-F111.5 | 27.11X18.07 | 61.69 |
| FC-P08082-16KM95 | Double Telecentric | 1.08 | 75.9 | 82 | 180 | 1.2@F13.5 | F8-F111 | 33.33X22.22 | 75.85 |
| FC-P09282-16KM95 | Double Telecentric | 0.943 | 87 | 82 | 250 | 1.5@F13.5 | F8-F111 | 38.18X25.45 | 86.87 |
| FC-P11082-16KM95 | Double Telecentric | 0.785 | 104.5 | 82 | 250 | 2.2@F13.5 | F8-F111 | 45.86X30.57 | 104.36 |
| FC-P12282-16KM95 | Double Telecentric | 0.708 | 115.8 | 82 | 260 | 2.7@F13.5 | F8-F111 | 50.85X33.9 | 115.71 |
| FC-P13782-16KM95 | Double Telecentric | 0.631 | 130 | 82 | 280 | 3.4@F13.5 | F8-F111 | 57.05X38.03 | 129.83 |
| FC-P15282-16KM95 | Double Telecentric | 0.57 | 143.9 | 82 | 320 | 4.3@F13.5 | F8-F111 | 63.16X42.11 | 143.72 |
| FC-P18282-16KM95 | Double Telecentric | 0.475 | 172.6 | 82 | 398 | 6.2@F13.5 | F8-F111 | 75.79X50.53 | 172.46 |
| FC-P19582-16KM95 | Double Telecentric | 0.444 | 184.7 | 82 | 400 | 7.3@F13.5 | F8-F111 | 81.08X54.05 | 184.5 |
| FC-P23882-16KM95 | Double Telecentric | 0.363 | 225.9 | 82 | 410 | 11.3@F13.5 | F8-F111 | 99.17X66.12 | 225.67 |
| FC-P26882-16KM95 | Double Telecentric | 0.323 | 253.9 | 82 | 410 | 14@F13.5 | F8-F111 | 111.46X74.3 | 253.62 |
| FC-P31082-16KM95 | Double Telecentric | 0.279 | 293.9 | 82 | 500 | 19.2@F13.5 | F8-F111 | 129.03X86.02 | 293.62 |
| FC-P35082-16KM95 | Double Telecentric | 0.247 | 332 | 82 | 540 | 24.3@F13.5 | F8-F111 | 145.75X97.17 | 331.66 |
| FC-P39082-16KM95 | Double Telecentric | 0.222 | 369.4 | 82 | 700 | 29.3@F13.5 | F8-F111 | 162.16X108.11 | 369.01 |
