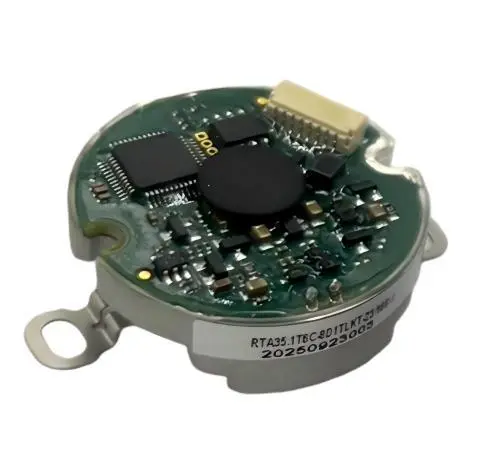

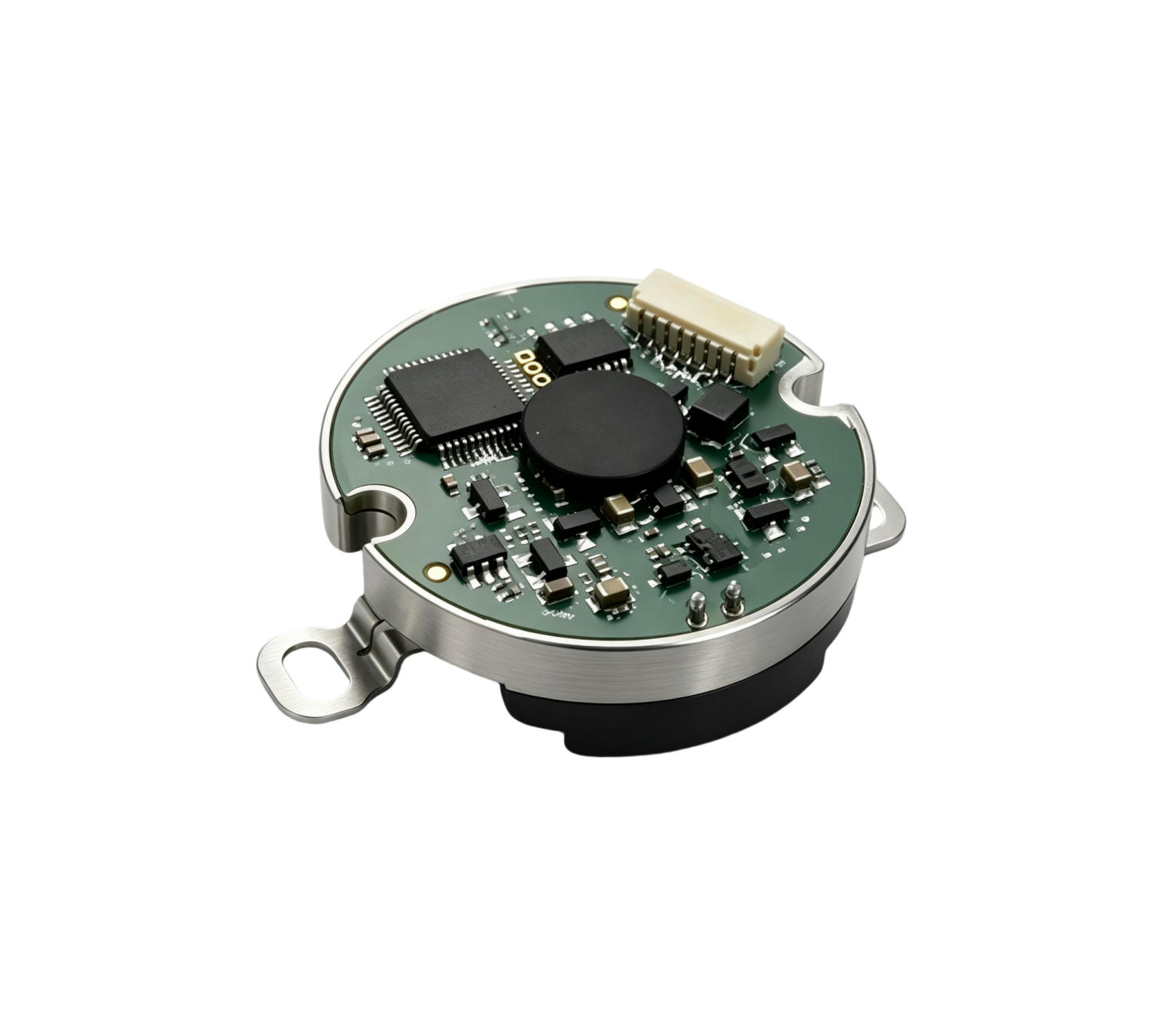

Intergrated RAA35.1T6
Absolute Optical Encoder
Specification parameters
| Model | Basic：RAA35.1T6; With Temp Sensor: RTA35.1T6 |
| Outer Diameter | ∅35mm |
| Shaft Diameter | ∅6mm |
| Supply Voltage | 5V±0.25 |
| Battery Voltage | 3.6V |
| Plate Spring | Models A, B, C, D available (refer to the catalog) |
| Communication Interface | RS485 (SSI, BISS Optional) |
| Baud Rate | 2.5MHz ；5MHz (Optional for Mass Production) |
| Update Rate | 16K |
| Communication Protocol | Timed Transmission |
| Communication Code System | Positive Logic Binary Code |
| Resolution-Single-Turn | 23bit (17bit, 25bit Optional) |
| Resolution-Multi-Turn | 16bit |
| Operating Speed | 6000rpm |
| Operating Temperature | -20°-100° |
| Operating Humidity | ＜90% RH（no condensation） |
| Protection Class | IP54 (motor end cover seal protection） |
