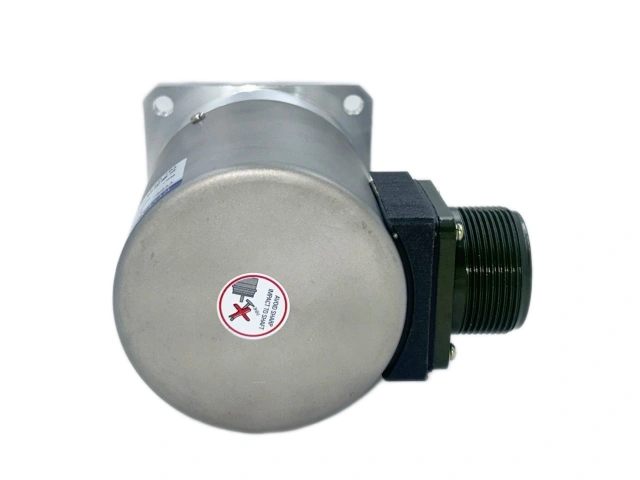

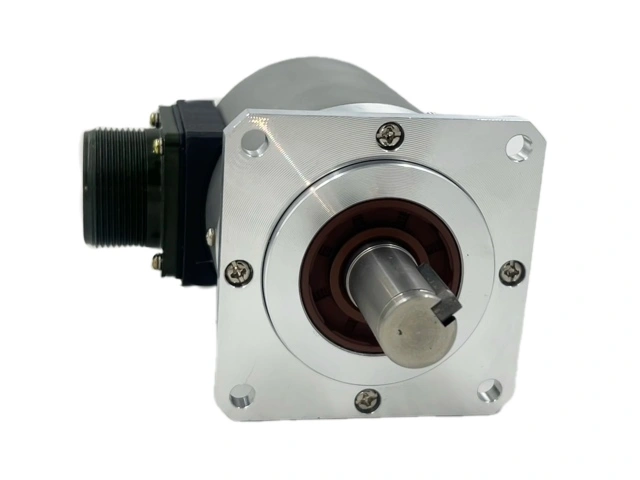

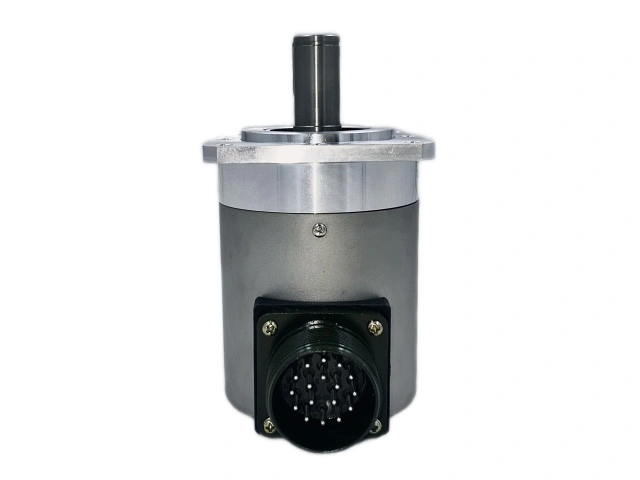

RTC66S
Solid Shaft Encoder
Product of outer diameter 66mm is widely used in various mechanical and optical light control industry.
There are a variety of output forms for customers to choose, the maximum output pulses up to 5400 ppr. Pulse number can be customized according to customer requirements. Optoelectronic devices ensure high reliability, long life, anti-jamming capability, wide temperature range.
Specification parameters
| Model | RTC66S15 |
| Product Type | Solid-shaft Incremental Encoder |
| RTC: Mainly for machine tool spindle series | |
| Outer Diameter | 66mm |
| Shaft Diameter | 15mm（Solid Shaft） |
| Resolution | 10, 60, 100, 120, 200, 250, 300, 360, 400, 500, 600, 720, 800, 900, 960, 1000, 1024, 1200, 1500, 1800, 2000, 2048, 2500, 3000, 3600, 4000, 4096, 5000, 5400 (Customizable) |
| Supply Voltage | DC5V; DC8-26V;DC10-30V; DC12V |
| Output Form | Voltage Output |
| Complementary Output | |
| Open - collector Output | |
| Long - line Drive Output | |
| Wide - voltage Long - line Output | |
| Output Signal | Output of Phase A (one - way) |
| 90° Phase - shifted A & B Signals | |
| Z signal | |
| Maximum Speed | 6000r/min |
| Maximum Radial/Axial Load | 30N/20N |
| Operating Temperature | -20～85℃ |
| Protection Rating | IP54 |
