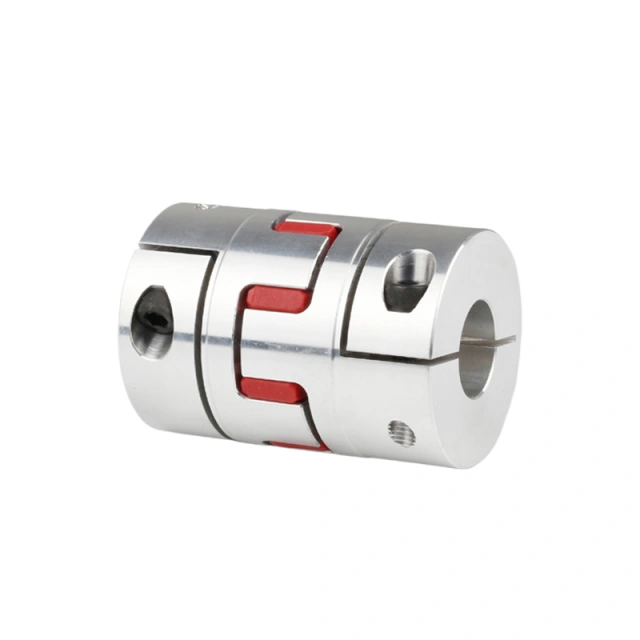

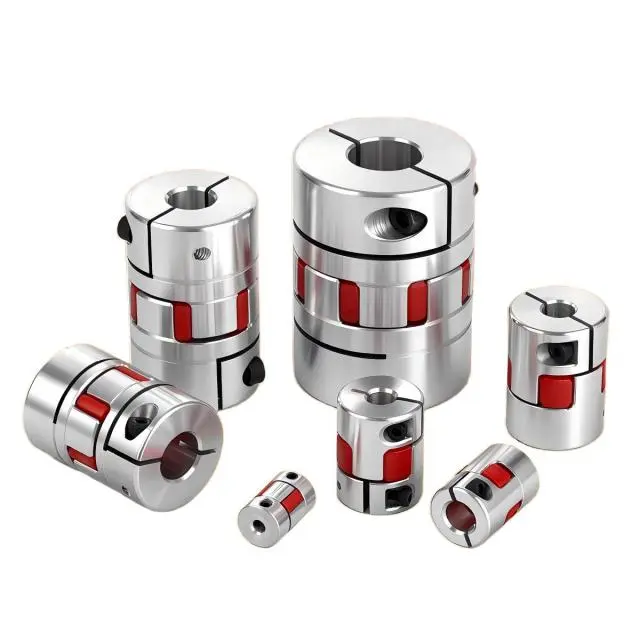

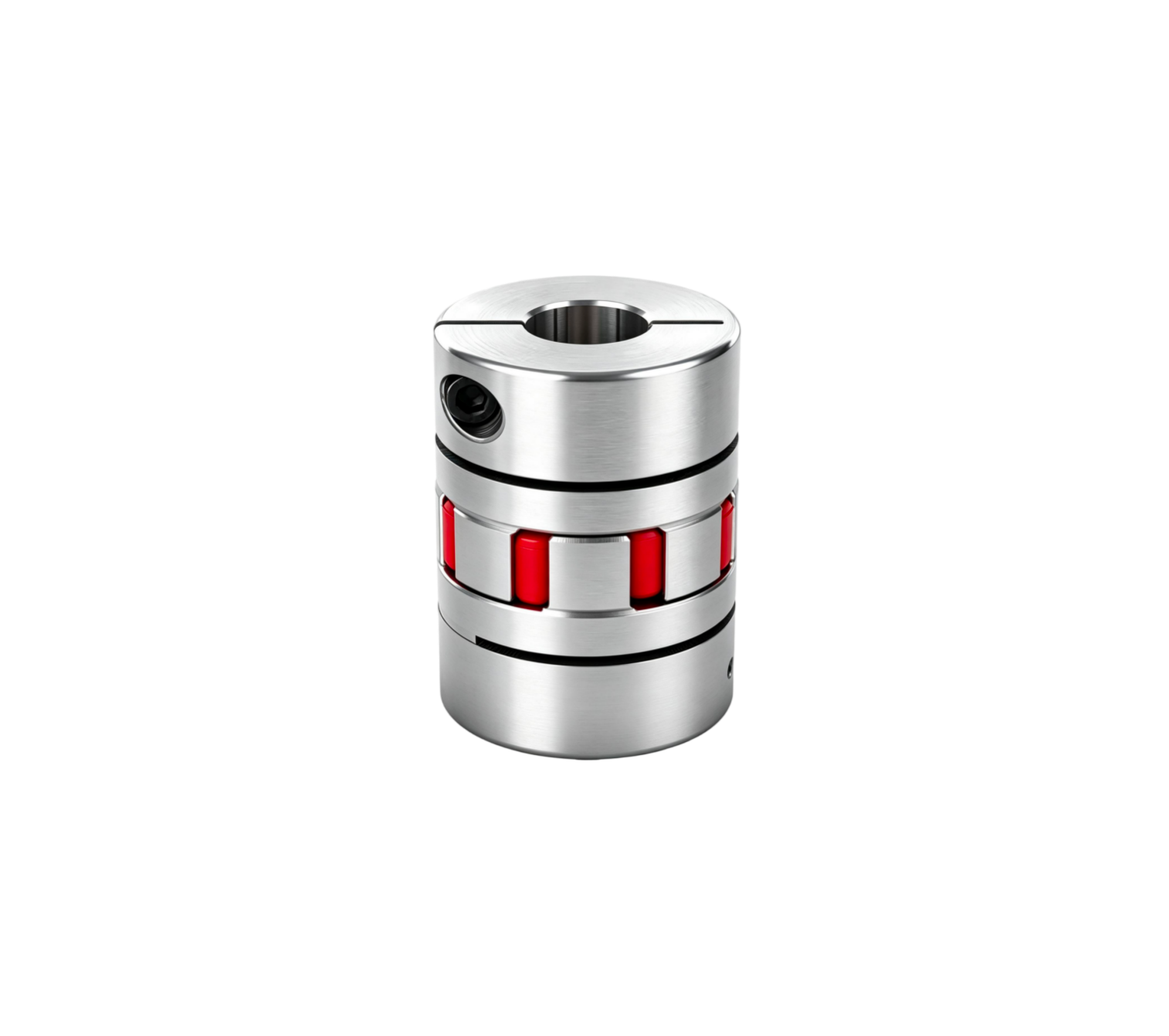

Coupling RD1-C

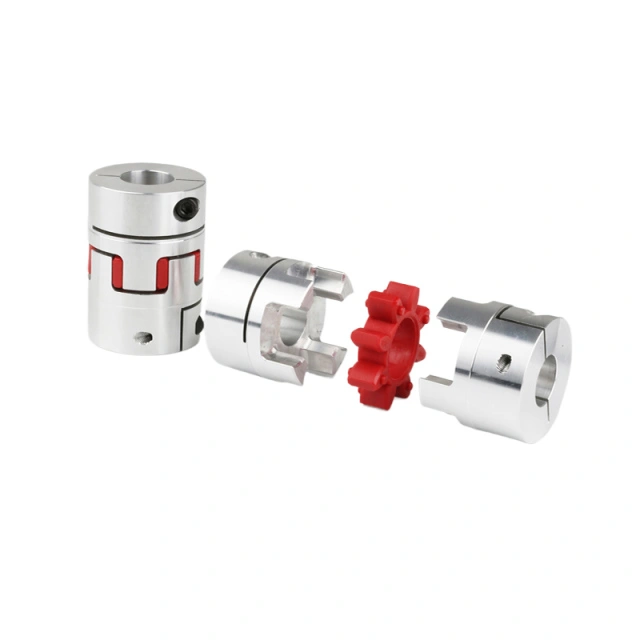

Imported rubber is used, according to different torque, the rubber material is different.
Specification parameters
| Jaw Clamp-Type Coupling | |||||
| Model | Flange OD (mm) | Shaft Dia Range (mm) | Total Length (mm) | Max Torque (N·m) | Max Speed (min⁻¹) |
| RD1-014CR | 14 | 3~6 | 22 | 2 | 10000 |
| RD1-020CR | 20 | 4~8 | 30 | 5 | 10000 |
| RD1-030CR | 30 | 6~14 | 35 | 12.5 | 10000 |
| RD1-040CR | 40 | 8~20 | 66 | 17 | 7000 |
| RD1-055CR | 55 | 10~28 | 78 | 34 | 6000 |
| RD1-065CR | 65 | 14~35 | 90 | 65 | 5900 |
| RD1-080CR | 80 | 19～45 | 114 | 80 | 4800 |
