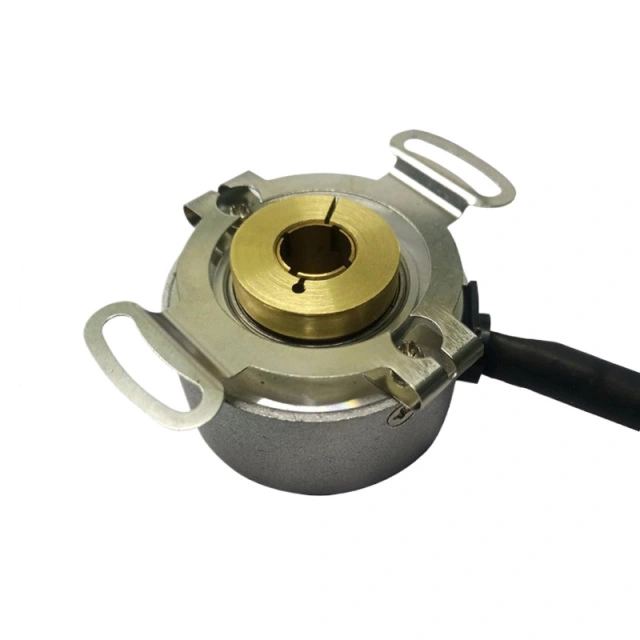

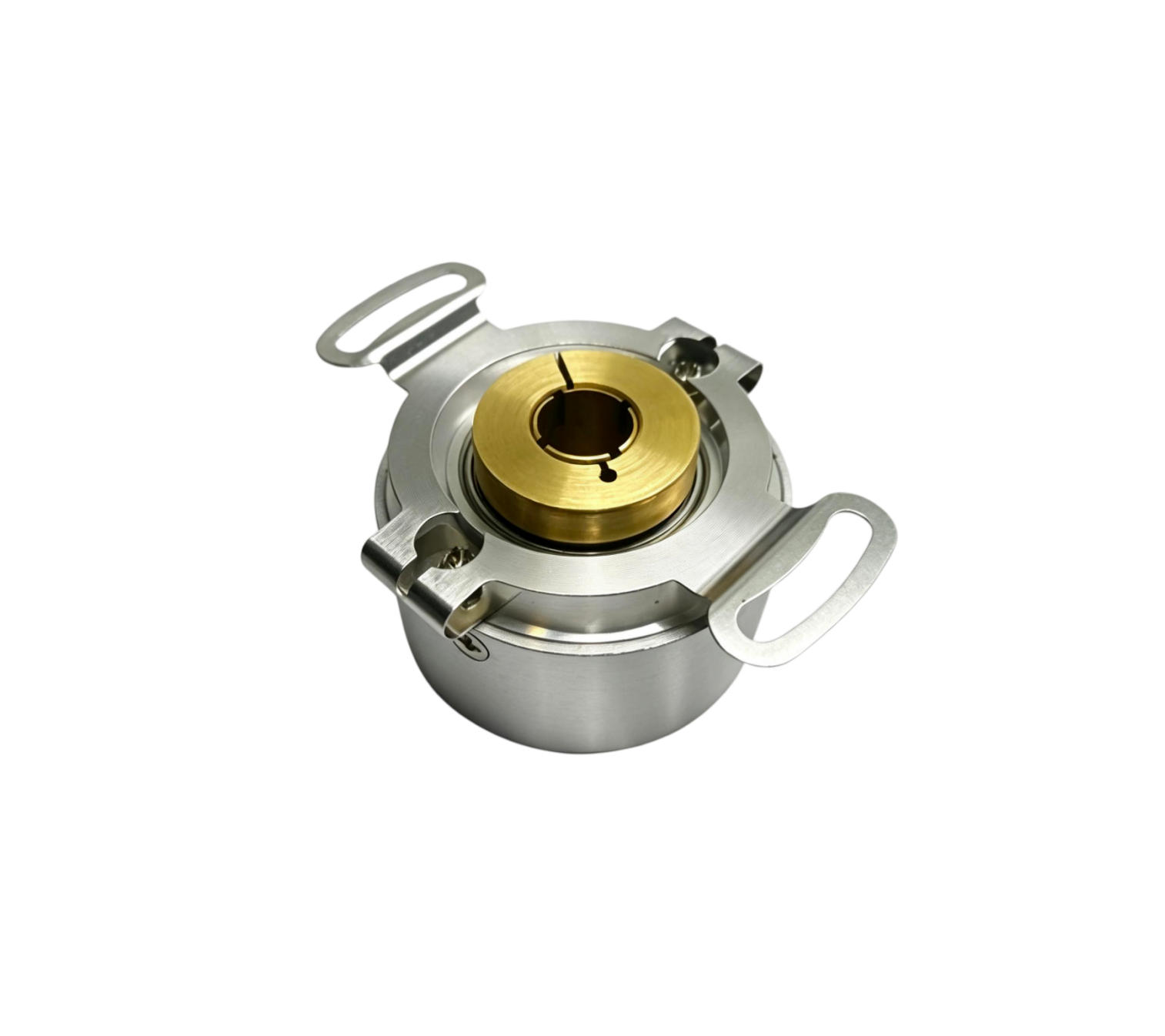

NVC37T
Incremental Optical Encoder
Compact, slim design, high-precision,resolutions up 2500ppr.
Straight and taper shaft are optional Import optoelectronic components,high anti-interference ability
Specification parameters
| Model | NVC37T8 |
| Outer Diameter | ∅35mm |
| Shaft Diameter | ∅8mm、∅9mm (Taper and straight types are optional) |
| Supply Voltage | 5V±0.25 |
| Electrical Output Type | Line Drive Output |
| Resolution | 2000ppr |
| Output Signals | A: A - Phase single - Channel Output |
| B: Two - Channel Output With 90° Phase Difference | |
| M: Zero Position Signal | |
| Universal Rotating Speed | 8000rpm |
| Max Rotating Speed | 15000rpm |
| Breaking Strength of Shaft and Bearing | ≥650N |
| Max Response Frequency | 300kHz |
| Operating Temperature | -20°~+85℃ |
| Protection Class | IP50 |
