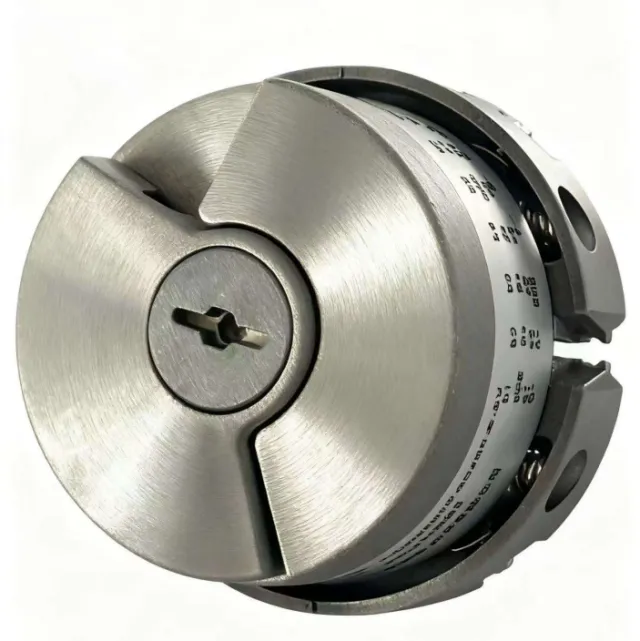

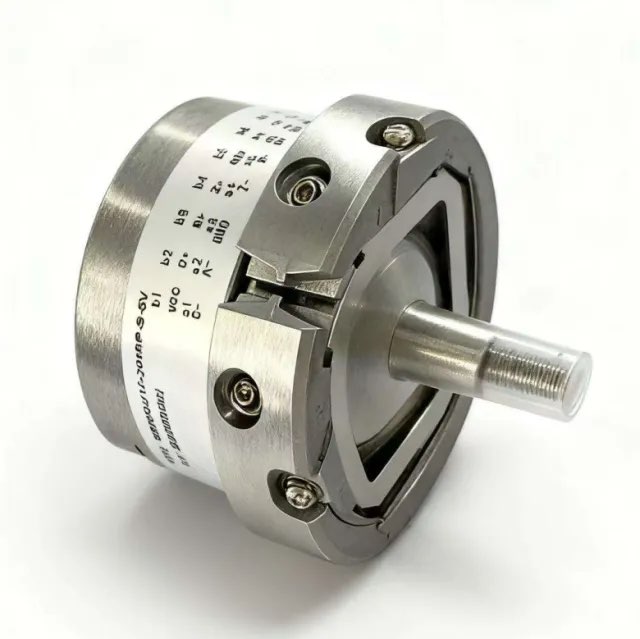

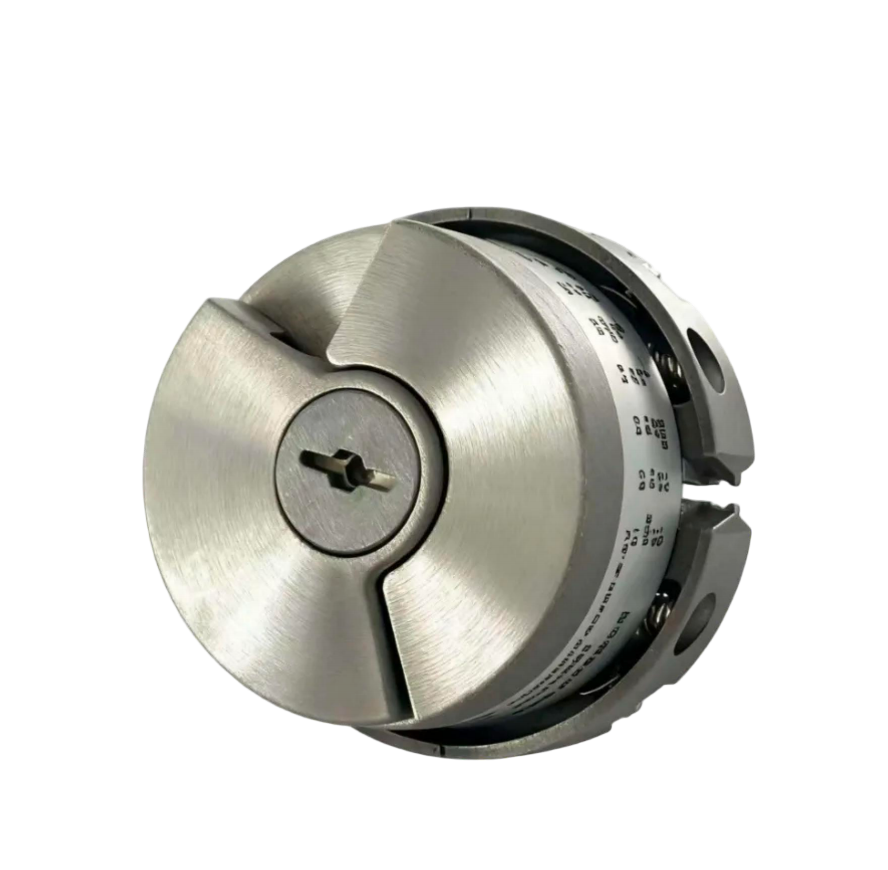

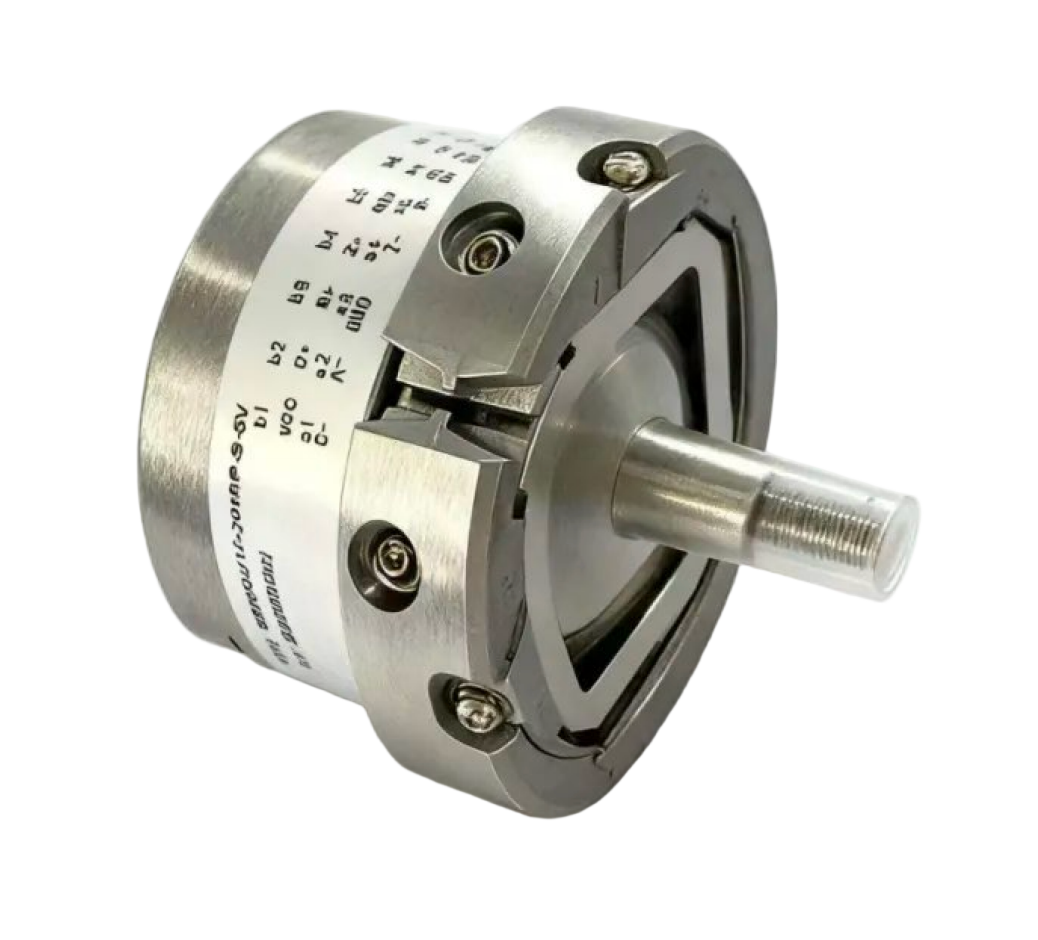

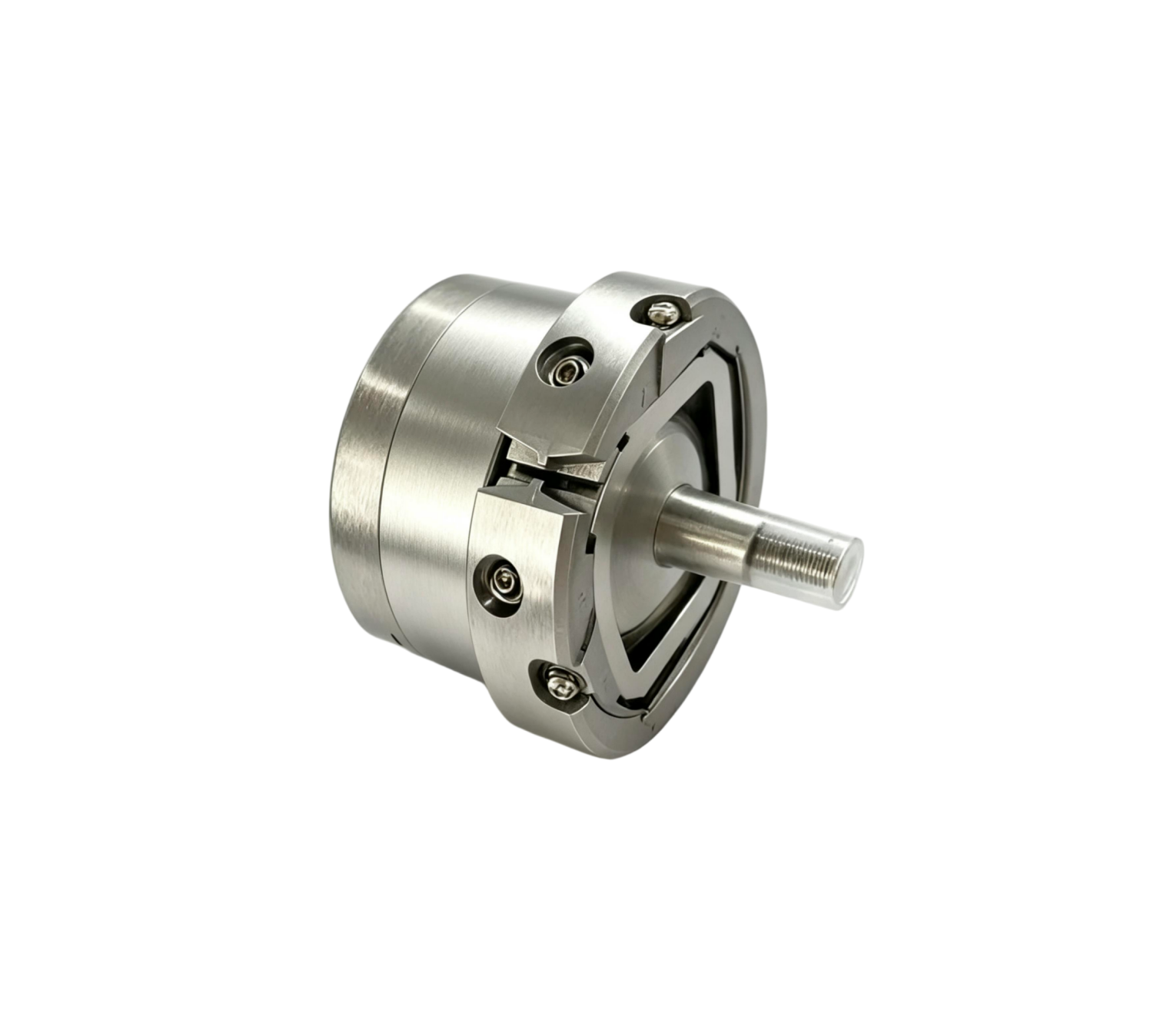

Intergrated RAA56U10
Absolute Optical Encoder
Integrated Transmissive Absolute Photoelectric Encoder OD56mm
Specification parameters
| Model | Basic：RAA56U10-12D1TLKT-23/16B |
| Outer Diameter | ∅56mm |
| Shaft Diameter | ∅9.25mm (Taper 1:10） |
| Supply Voltage | 5V±0.25 |
| Battery Voltage | 3.6V |
| Communication Interface | RS485 |
| Baud rate | 2.5MHz (Optional for Mass Production) |
| Update Rate | 16K |
| Communication Protocol | Timed Transmission |
| Communication Code System | Positive Logic Binary Code |
| Resolution-Single-Turn | 23bit (17bit, 25bit, 26bit Optional) |
| Resolution-Multi-Turn | 16bit |
| Operating Speed | Default ≤6000rpm; High Speed (6000 - 12000rpm) |
| Operating Temperature | -10°-90° |
| Operating Humidity | ＜90% RH（no condensation） |
| Protection Class | IP64 |
